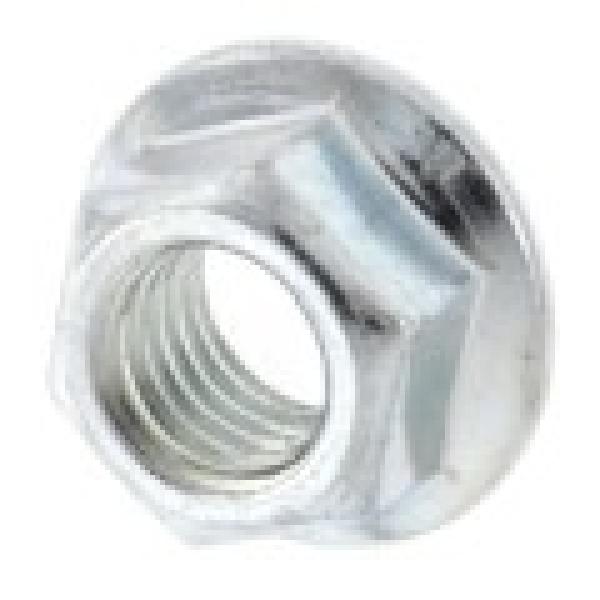

Hexagon nut with flange, M 8; DIN 6923 (similar to EN 1661), .8, galvanized

Mobile Preview: Hexagon nut with flange, M 8; DIN 6923 (similar to EN 1661), .8, galvanized

-51%

Hexagon nut with flange, M 8; DIN 6923 (similar to EN 1661), .8, galvanized

Product No.:: 9823184111
Shipping time:: ca. 3-4 days (abroad may vary)
Stock:: 0 pice
Weight:: - kg per pice

RRP 0,31 EUR
Only 0,15 EUR

incl. 19% tax excl. Shipping costs

pice:

Add to wish list

Ask about product

Description

.... without locking teeth!

Thread pitch: 1.25
Nominal thread diameter: 8
Collar thickness: 1.2
Collar diameter: 17.9
Total height: 8
Wrench size: 13
Customs tariff numbers: 73181691, 73181699

Product data

DIN ISO standard: DIN 6923
DIN: 6923
Material quality: .8
Surface: galvanized
Diameter: 8

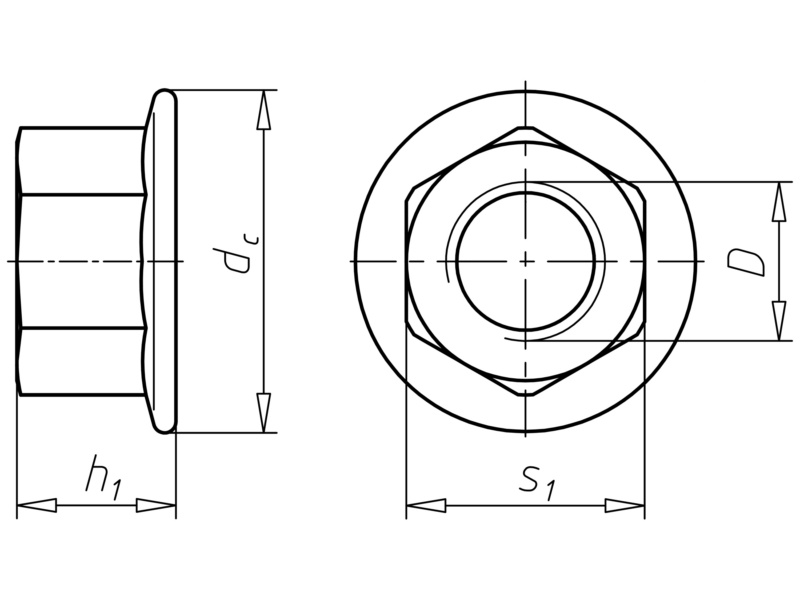

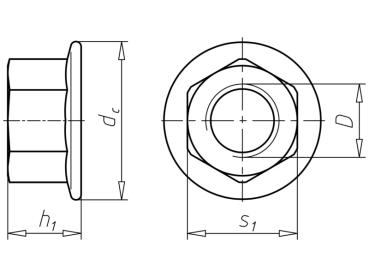

Legend:
Dimensions = diameter for metric dimension (M) (nominal dimension)
m max. = total height
s = wrench size
c = flange height
dc max. = flange diameter

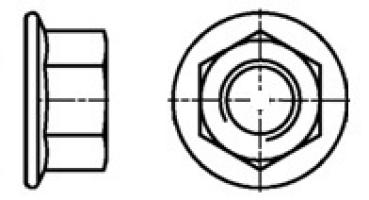

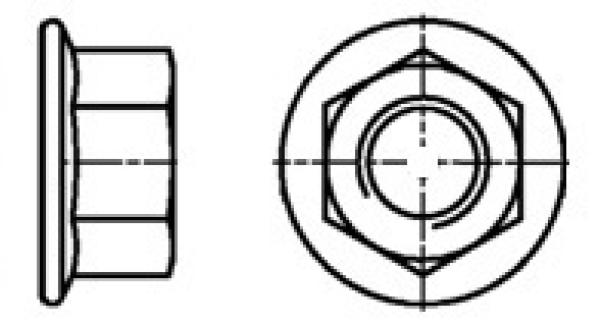

Details DIN 6923

DIN 6923 hexagon nuts with flange without ribs are hexagon nuts with a enlarged contact surface attached to the lower end. This creates better contact between the nut and the surface, which results in a better grip. In addition, the larger surface area prevents damage or marks from the nut on soft metals or plastics.

Where are DIN 6923 hexagon nuts with flange without ribs used?

Flange nuts are used where a particularly secure hold is required, e.g. for wheel bolts, exhaust hangers or adapter plates.

Flange nuts and locking teeth

DIN 6923 hexagon nuts with flange without ribs do not have locking teeth, which would provide an additional locking effect.

Variants and materials of DIN 6923 hexagon nuts with flange without ribs

For outdoor use, the use of stainless steel A2 is recommended because it does not rust when in contact with water or water in the air. In maritime areas along the coast or when in contact, even for a short time, with salt water or acids, stainless steel A4 should be used. For applications in mechanical engineering or construction, flange nuts with increased strength are used, e.g. steel class 8 or class 10. These steels can also be treated with corrosion protection, usually galvanic zinc plating, on request.

Used in ....
