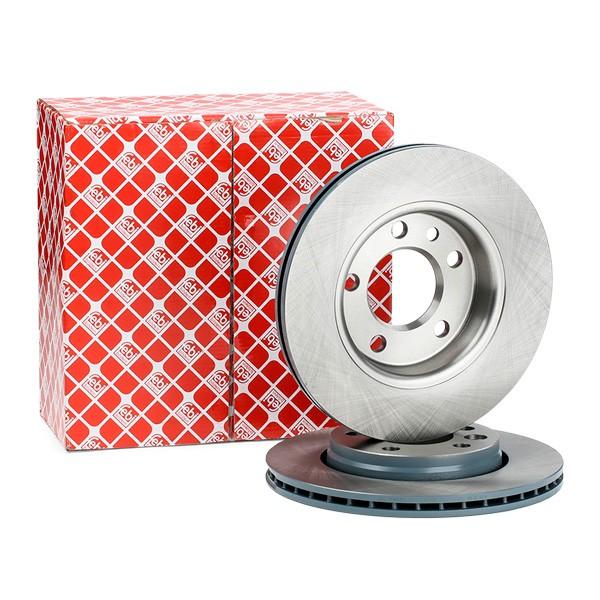

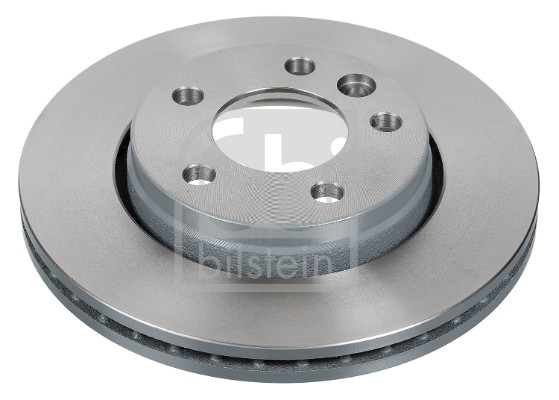

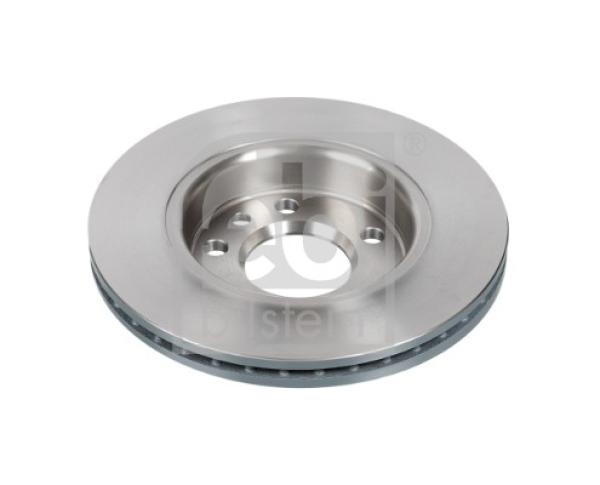

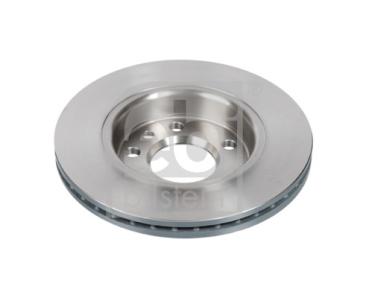

Rear brake disc(s), Ø 294 x 22 mm (28682), coated; VW T5 and others...
-38%
Rear axle, 294x22mm, 5x120, internally ventilated, coated
Brake disc type: internally ventilated
Installation position: Rear axle
Outer diameter: Ø 294 mm
Number of mounting holes: 5
Thickness: 44.4 mm
Minimum thickness: 19.5 mm
Weight: 8.55 kg
Brake disc thickness: 22 mm
Bolt circle diameter: 120 mm
Centering diameter: Ø 76 mm
Number of rim holes: 5
Surface: coated
Vehicle type: Transporter
Brake disc type: internally ventilated
Installation position: Rear axle
Outer diameter: Ø 294 mm
Number of mounting holes: 5
Thickness: 44.4 mm
Minimum thickness: 19.5 mm
Weight: 8.55 kg
Brake disc thickness: 22 mm
Bolt circle diameter: 120 mm
Centering diameter: Ø 76 mm
Number of rim holes: 5
Surface: coated
Vehicle type: Transporter
VW
- California T5 Bus (7EC, 7EF, 7EG, 7HF) ( 05.2007 - 08.2015 , 84 - 204 PS)
- California T6 Bus (SGC, SGG, SHC) ( 04.2015 - ... , 84 - 204 PS)
- Multivan T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) ( 04.2003 - 08.2015 , 84 - 235 PS)
- Multivan T6 (SGF, SGM, SGN) ( 04.2015 - ... , 84 - 204 PS)
- Transporter T5 Pritsche / Fahrgestell (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD) ( 04.2003 - 08.2015 , 84 - 235 PS)
- Transporter T5 Kastenwagen (7HA, 7HH, 7EA, 7EH) ( 04.2003 - 08.2015 , 84 - 235 PS)
- Transporter T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) ( 04.2003 - 08.2015 , 84 - 235 PS)
- Transporter T6 Bus (SGB, SGG, SGJ) ( 04.2015 - ... , 84 - 204 PS)
- Transporter T6 Kastenwagen (SGA, SGH) ( 04.2015 - ... , 84 - 204 PS)
- Transporter T6 Pritsche / Fahrgestell (SFD, SFE, SFL, SFZ) ( 04.2015 - ... , 84 - 204 PS)
VW
- 7E0 615 601 D
- 7H0 615 601 B
